USBD480-WQ43

  • Image
  • Image USBD480-WQ43
  • Image USBD480-WQ43
  • Image
  • Image
  • Image
  • Image
  • Image

Easy way to add a TFT display to your project

Read More

Capable of streaming full screen video over USB

Read More

Also available as a touchscreen version

Read More

USB 4.3" 480x272 TFT LCD

Currently available from stock



Description

4.3" TFT display with USB interface for use with a PC or embedded devices with USB host. Thanks to the Hi-Speed USB interface used it is possible to stream video to the display.



Features

  • 4.3" 480x272 pixel resolution color TFT LCD
  • Hi-Speed USB interface 480 Mbps
  • Optional touchscreen
  • 16 bit colors
  • 8 MB framebuffer memory
  • Display can be updated up to 90 frames per second over USB (can be configured also for higher transfer rate than this if needed)
  • USB powered (current usage is about mA with backlight at full brightness and USB data transfer in progress)



Easy way to add a TFT display to a project

This display makes it quick and easy to add a TFT display to a project without having to design complex display interfaces. All that is needed from the host hardware is a USB host port. Single USB cable is used for both data transfer and for powering the display module.



Full screen video streaming over USB

The display can be updated more than 90 full frames per second over USB so it is possible to stream video to the display. The display also supports updating only partial areas of the framebuffer to reduce data transfer and offer even faster update rates. Some applications can take advantage of the fact that the large framebuffer memory also makes it possible to store 32 full frames in the framebuffer and then only send commands to switch between these preloaded images without having to transfer new image data to the display.



Touchscreen

The display is available with or without touchscreen.

USBD480-WQ43

  • Without touchscreen
  • Luminance 500 cd/mA typ.

USBD480-WQ43-T

  • With touchscreen
  • Luminance 400 cd/mA typ.
  • Additional 1.15 mm thicker



User Guide

http://www.lcdinfo.com/usbd480/documentation/USBD480-WQ43_User_Guide.pdf



Pictures

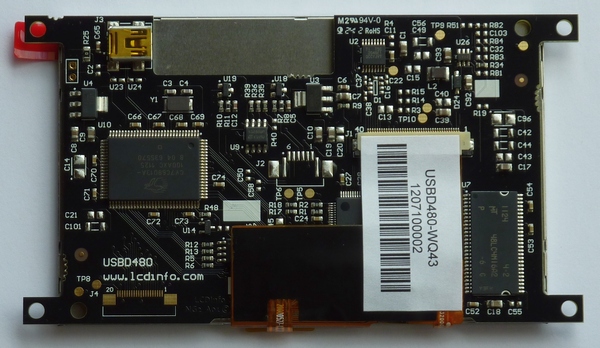

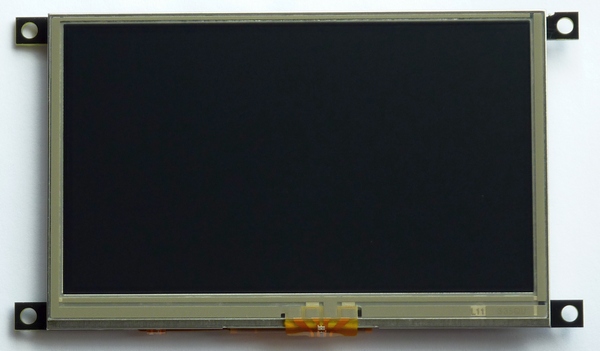

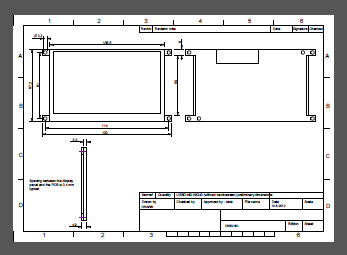

Dimensions

http://www.lcdinfo.com/usbd480/documentation/USBD480-WQ43_dimensions.pdf



3D model

http://www.lcdinfo.com/usbd480/documentation/USBD480-WQ43_3dmodel.pdf
